Autonomous Operation, Goodbye to Manual Driving
Fully autonomous navigation with GNSS guidance and obstacle avoidance eliminates the need for skilled operators, ensuring consistent spraying patterns orchard-wide.

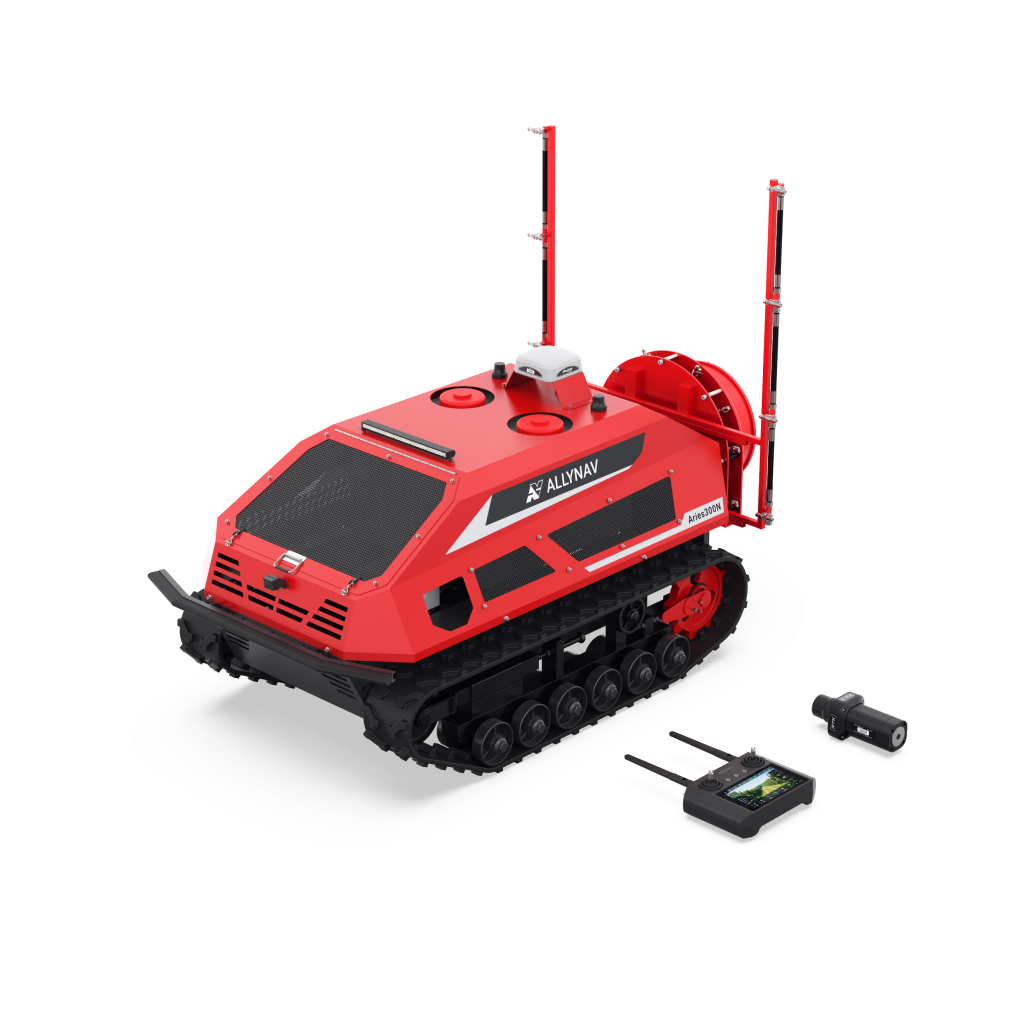

Aries300N Orchard Spraying Robot
A hybrid-powered orchard spraying robot combining GNSS navigation, autonomous driving, and obstacle avoidance
EFFICIENTSTABLEPREMIUMACCURATEUPGRADABLE
- Combines GNSS navigation, autonomous driving, obstacle avoidance, and intelligent operation — goodbye to manual driving in orchards
- Robust design with stable performance in challenging terrain, slopes, and dense orchard environments
- Reliable operation with cost-effective efficiency — reduces labor costs by up to 60% compared to manual spraying
- Flexible mode switching between autonomous and manual operation for diverse orchard layouts and spray requirements
- Hybrid gasoline-electric power system enables extended runtime up to 8 hours with 300L tank capacity
- Autonomous navigation
- Hybrid power (Gasoline-Electric)
- Air-assisted spraying
- Night mode operation
- 3-10m spray width
- GNSS-guided precision
Learn More About Aries300N Orchard Spraying Robot

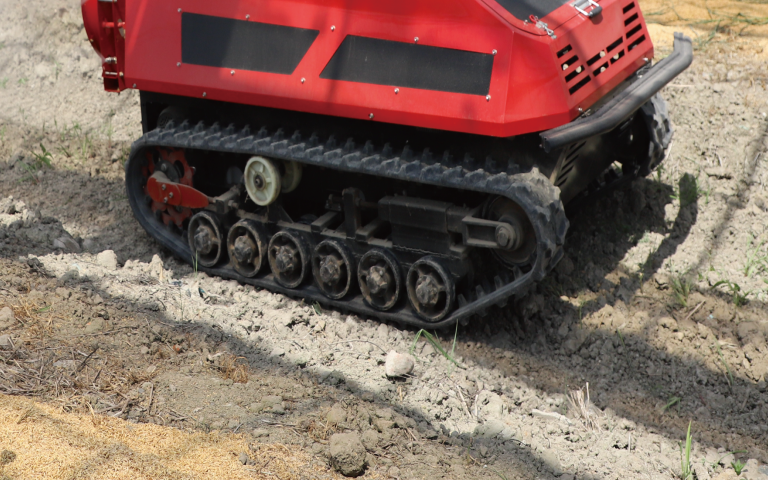

Robust Design, Stable Performance
Heavy-duty chassis with all-terrain capability handles steep orchard slopes and uneven ground, maintaining stable spraying performance in challenging conditions.
Reliable Operation, Cost-Effective Efficiency
Hybrid power system ensures full-day operation without refueling, while air-assisted spraying technology delivers uniform coverage with minimal chemical waste.

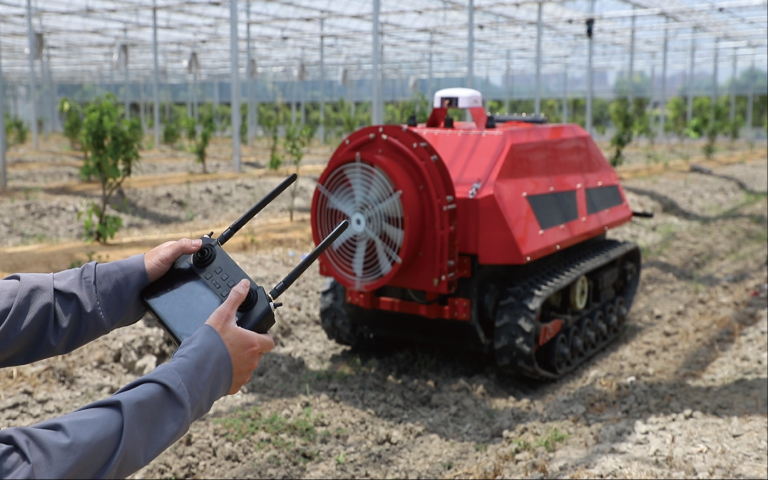

Flexible Mode Switching
Seamlessly switch between fully autonomous, remote-controlled, and manual driving modes to adapt to different orchard layouts, tree spacing, and spray requirements.
Specifications
| Dimensions | 2200 × 1200 × 1000 mm |
|---|---|
| Weight | 450 kg |
| Tank Capacity | 300 L |
| Spray Width | 3–10 m |
| Atomization | 100–500 μm |
| Nozzles | 6–8 |
| Power | Hybrid (Gasoline-Electric) |
| Runtime | 8 hours |
| Charging Time | 3 hours |
Frequently Asked Questions
Aries300N is an intelligent tracked orchard spraying robot that integrates GNSS navigation and autonomous driving. It is ideal for precision spraying in standardized orchards, vineyards, and forestry operations where consistent coverage and reduced labor are critical.
Aries300N uses a pressure-sending and air-assisted dual spraying system, with 6–8 nozzles producing atomization between 100–500 μm. It achieves a spray width of 3–10 meters, ensuring thorough coverage across diverse orchard layouts and tree spacings.
Aries300N supports fully autonomous, remote-controlled, and manual driving modes. Operators can monitor and adjust spraying parameters, track progress, and switch modes remotely, giving maximum flexibility for different operational requirements.
