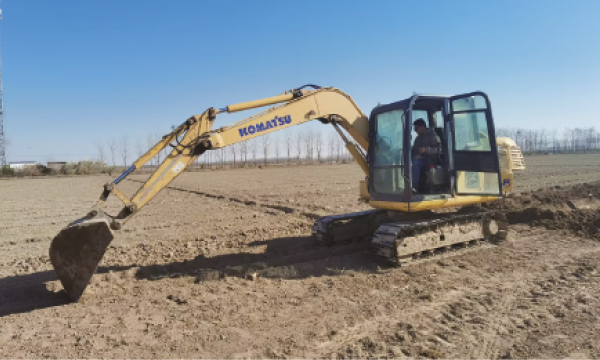

Land Leveling
Achieve precise finish grades for building pads, parking lots, and agricultural land with real-time guidance that eliminates guesswork and reduces rework.

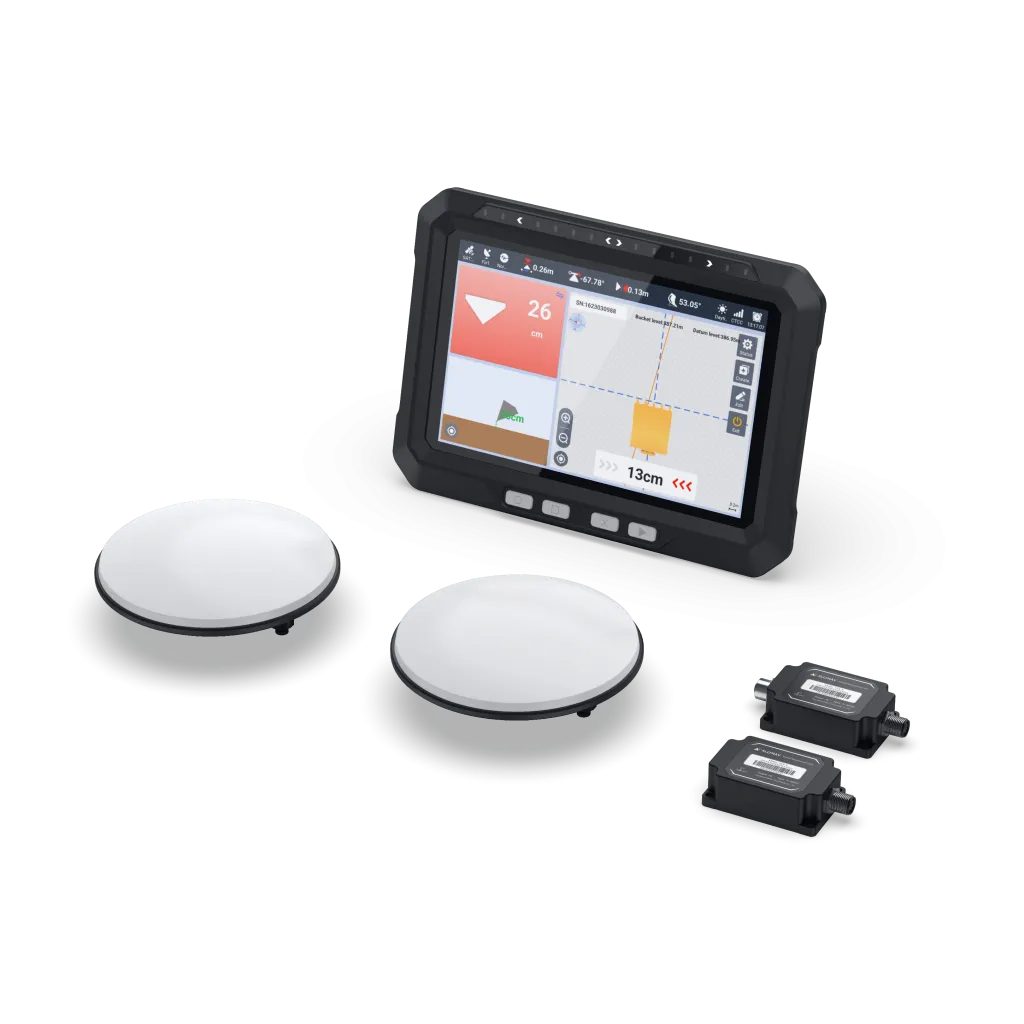

EGS101 Intelligent Excavator Guidance System
Works seamlessly with a wide range of excavator models, providing precise real-time guidance for digging and grading
EFFICIENTSTABLEACCURATEUPGRADABLE
- Works seamlessly with a wide range of excavator models, providing precise real-time guidance for digging depth control and slope matching
- Combines GNSS and laser sensors for accurate 2D and 3D grade control in all working conditions
- Reduces over-digging by up to 80%, saving time on backfill and material costs
- Intuitive 7-inch display shows real-time bucket position relative to target grade, eliminating the need for grade checkers
- Quick installation and calibration — move the system between machines in under 30 minutes
- Grade control
- Depth display
- Slope matching
- 2D/3D control
- GNSS + Laser sensors
- ±3 cm accuracy
Learn More About EGS101 Intelligent Excavator Guidance System

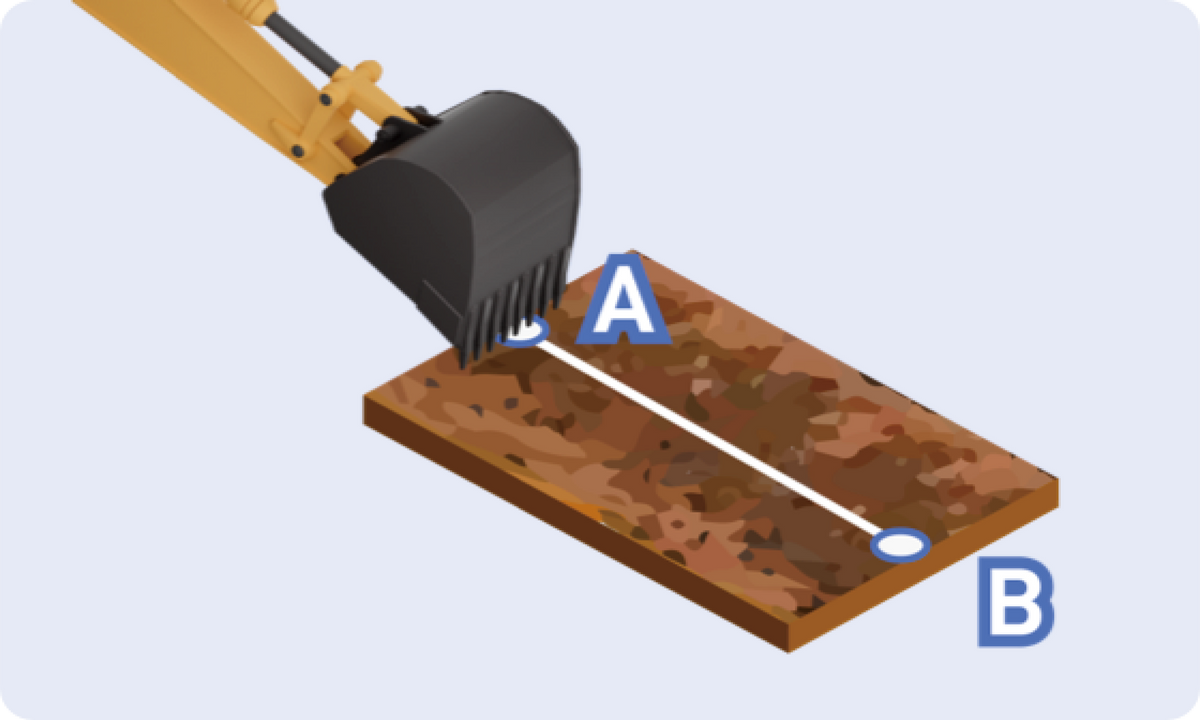

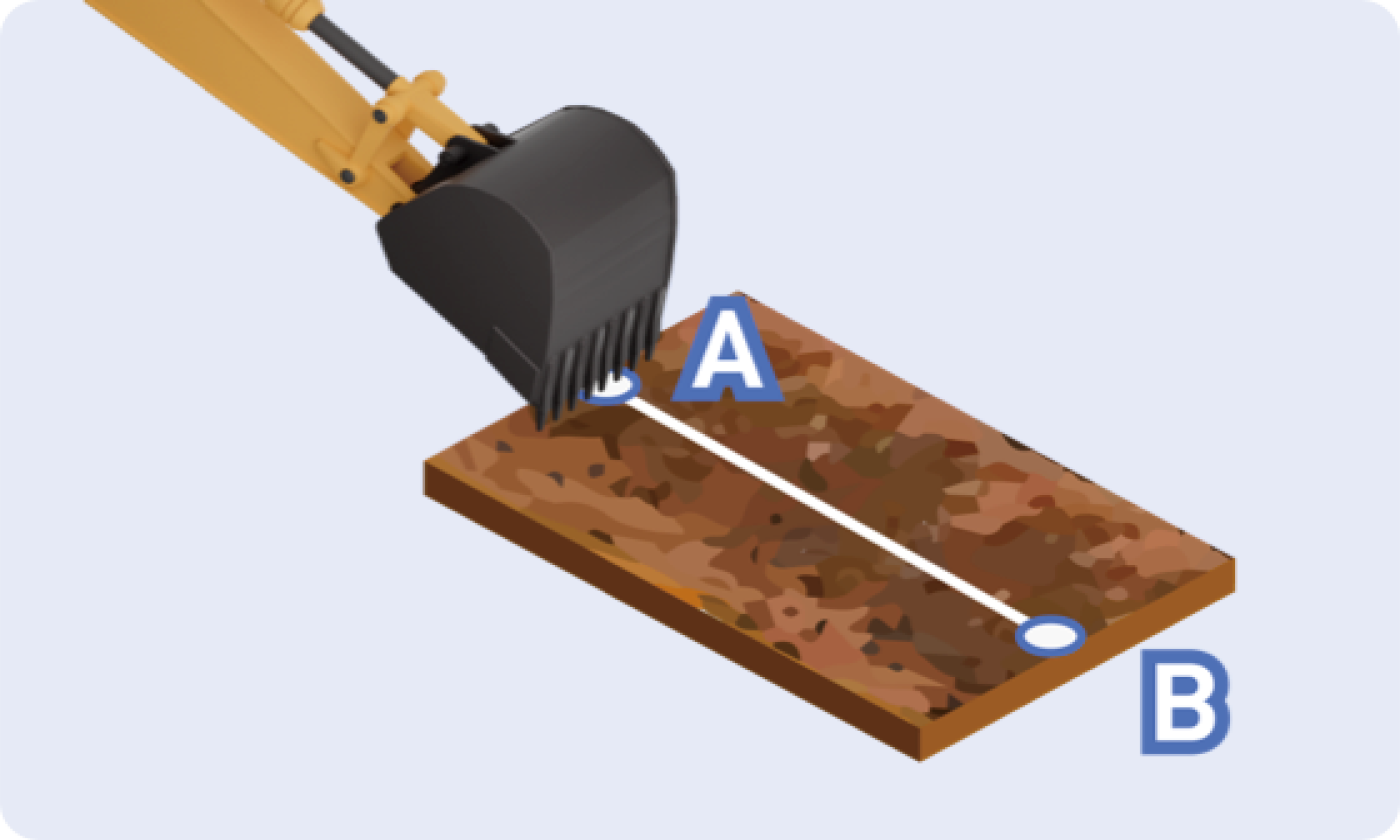

Straight-Line Guidance
Maintain accurate trench alignment for utility installation, drainage ditches, and foundation excavation with visual guidance indicators on the in-cab display.

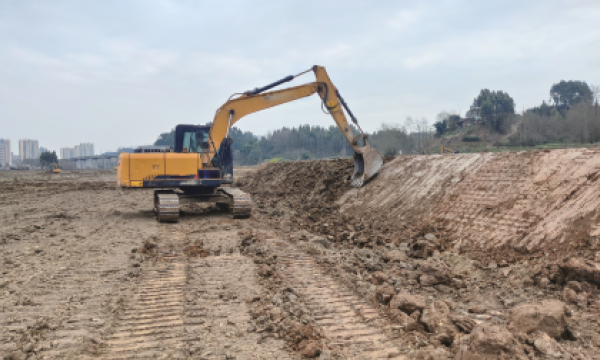

Slope Grading
Precisely cut slopes for embankments, waterways, and road shoulders with automated depth control that matches the target slope in real time.
Specifications
| Display | 7 inch, 1280×800 |
|---|---|
| Protection | IP67 |
| Power Supply | DC 12V/24V |
| Operating Temp | –20°C to +70°C |
Frequently Asked Questions
EGS101 is an intelligent grade control system for excavators, designed to monitor bucket elevation, slope, and orientation in real time. It is widely used for precision excavation tasks requiring accurate depth and slope control, such as trenching, grading, and foundation work.
EGS101 achieves a grading accuracy within ±2.5 cm. It uses dual-frequency GNSS (supporting GPS, BeiDou, GLONASS) combined with high-sensitivity IMU sensors to provide real-time bucket position and orientation data, enabling precise depth and slope control.
EGS101 is ideal for trenching, land leveling, canal/road/pond slope grading, and embankment construction. It ensures surface uniformity, enhances construction quality, and significantly reduces the need for manual grade checking and rework.
