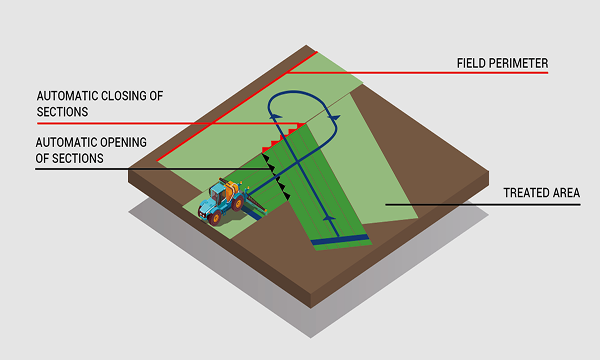

Precision Spraying With Section Control
Up to 16 individually controlled sections ensure precise chemical application, automatically shutting off in overlap zones to prevent waste and crop damage.

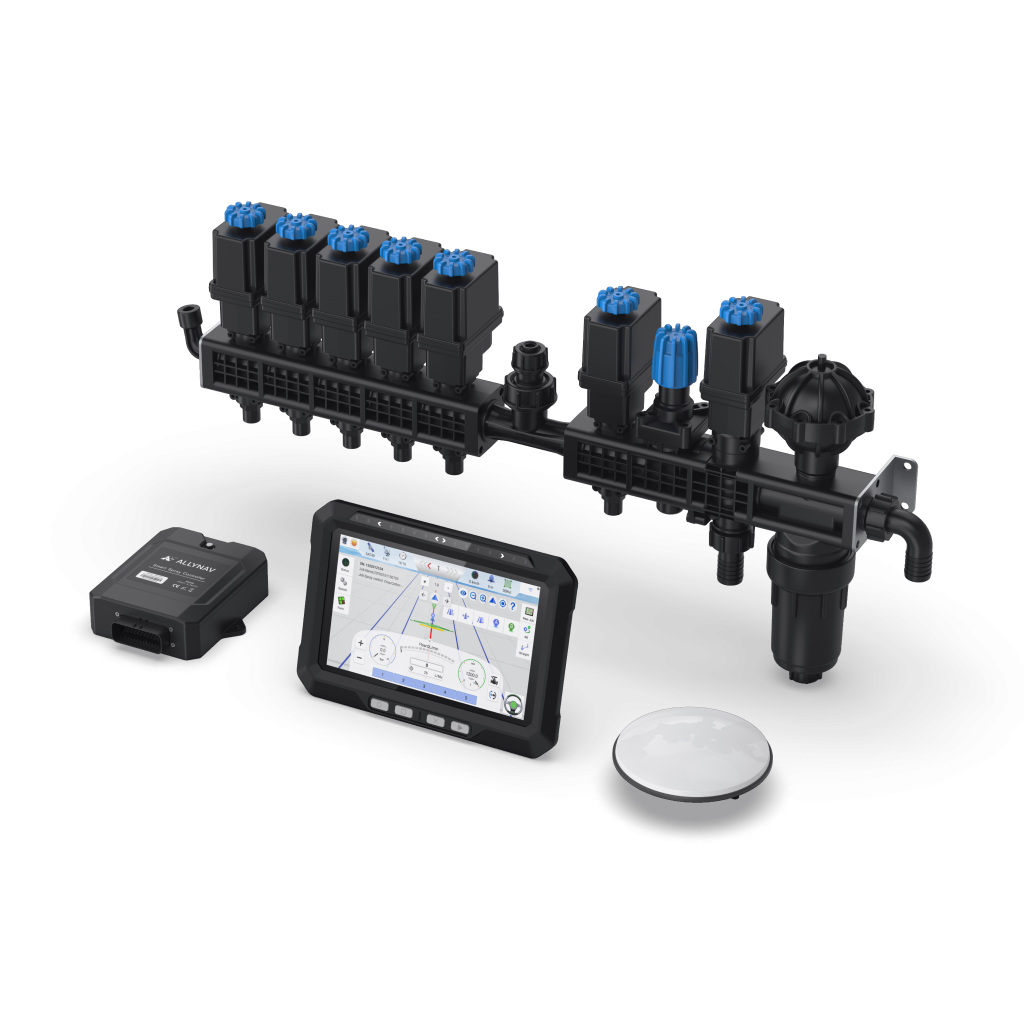

VS100 Spray Control System
The VS100 Smart Spray Control System utilizes advanced satellite navigation to deliver precise pest and weed management
EFFICIENTSTABLEPREMIUMACCURATEUPGRADABLE
- Utilizes advanced satellite navigation and control technology to deliver precise pest and weed management, reducing chemical waste by up to 15%
- Section control with up to 16 individual sections ensures precise application, eliminating overlaps and skips even in irregularly shaped fields
- Visualized operation interface provides real-time spray data including pressure, flow rate, and coverage maps for complete traceability
- High compatibility with major sprayer brands and ISOBUS implements, with easy expansion for additional precision agriculture functions
- Reapplication control prevents double-spraying of treated areas, saving chemicals and protecting crop health
- Precision spraying
- Section control (up to 16 sections)
- Flow rate monitoring
- 98% accuracy
- Real-time monitoring
- ISOBUS support
- GNSS-based flow control
Learn More About VS100 Spray Control System

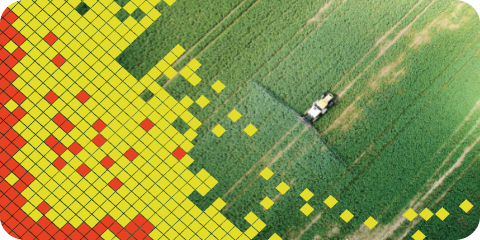

Visualized Operation Interface
Real-time display of spray pressure, flow rate, coverage area, and section status on an intuitive touchscreen interface for complete operational awareness.

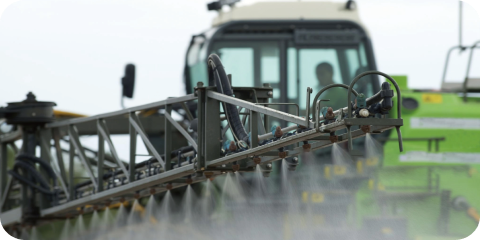

Reapplication Control
Smart tracking prevents double-spraying of previously treated areas, saving chemicals and protecting crops from over-application damage.

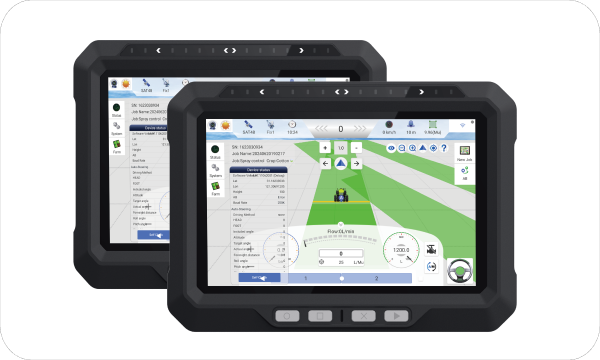

High Compatibility and Easy Expansion
Works with major sprayer brands and ISOBUS-compatible equipment. Modular design supports future upgrades to meet evolving precision agriculture needs.
Row Crops
Optimized for row crop applications including corn, soybeans, cotton, and wheat, with precise nozzle control matched to row spacing.

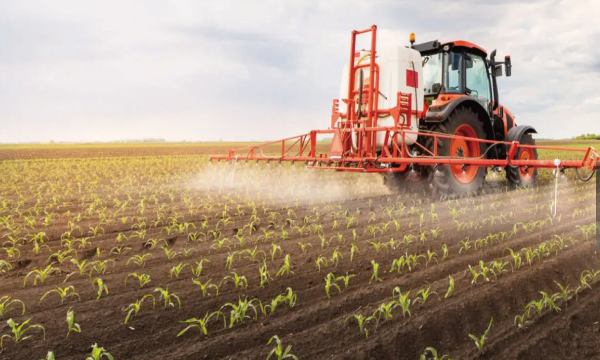

Specialty Crops
Adaptable spraying parameters for specialty crops including vineyards, orchards, and vegetable production, ensuring appropriate coverage for each crop type.

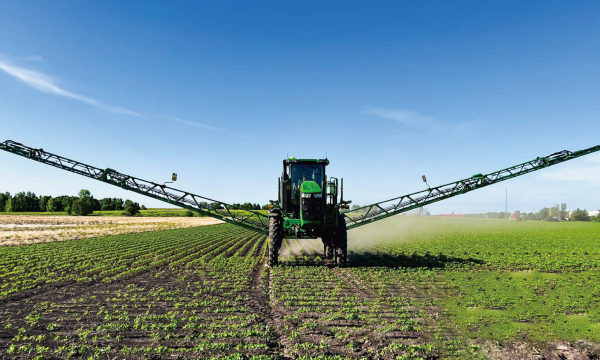

Large-Scale Farms
Designed for high-efficiency operations across large acreages, with automated documentation and reporting for regulatory compliance and farm management.

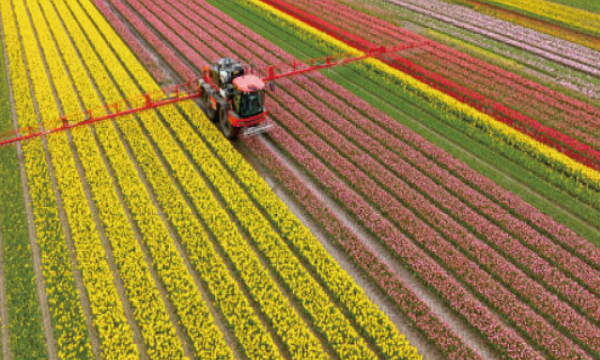

Environmental Protection Projects
Precision application reduces chemical drift and runoff, supporting sustainable farming practices and environmental stewardship goals.
Specifications
| Size | Φ 152 × 62.2 mm |
|---|---|
| Weight | ≤ 400 g |
| GPS | L1/L2/L5 |
| BDS | B1/B2/B3 |
| GLONASS | L1/L2/L3 |
| GALILEO | E1/E5a/E5b/E6 |
| QZSS | L1/L2/L5/L6 |
| IRNSS | L5 |
| L-Band | Supported |
| Display | 10.1 inch |
|---|---|
| IP Rating | IP67 |
Frequently Asked Questions
The VS100 is an intelligent spray control system that integrates GNSS positioning, sensors, and electromechanical-hydraulic control. It enables precision section control, automatic flow adjustment based on vehicle speed, and real-time monitoring of spraying parameters for efficient crop protection.
VS100 uses a closed-loop control algorithm to adjust spray flow based on vehicle speed and GNSS position. It maintains flow deviation within ±2% and supports up to 16 independent sections, ensuring precise application with minimal overlap or missed areas.
VS100 supports automatic section control and intelligent reapplication prevention, eliminating overlaps and skips. This minimizes pesticide waste and environmental impact while ensuring complete crop coverage. Real-time data logging supports regulatory compliance and sustainable farming practices.
