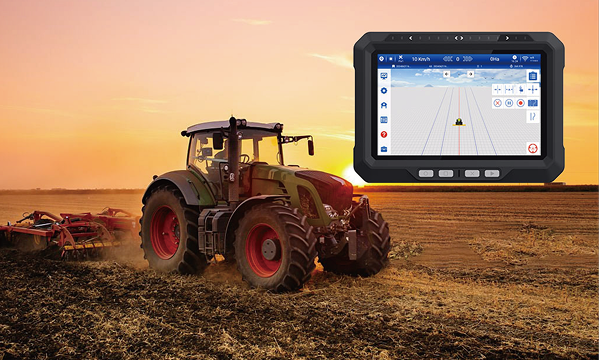

Easy To Use
The AF305 is designed for simplicity — quick 20-minute setup with intuitive controls that minimize operator training time and get you into the field faster.

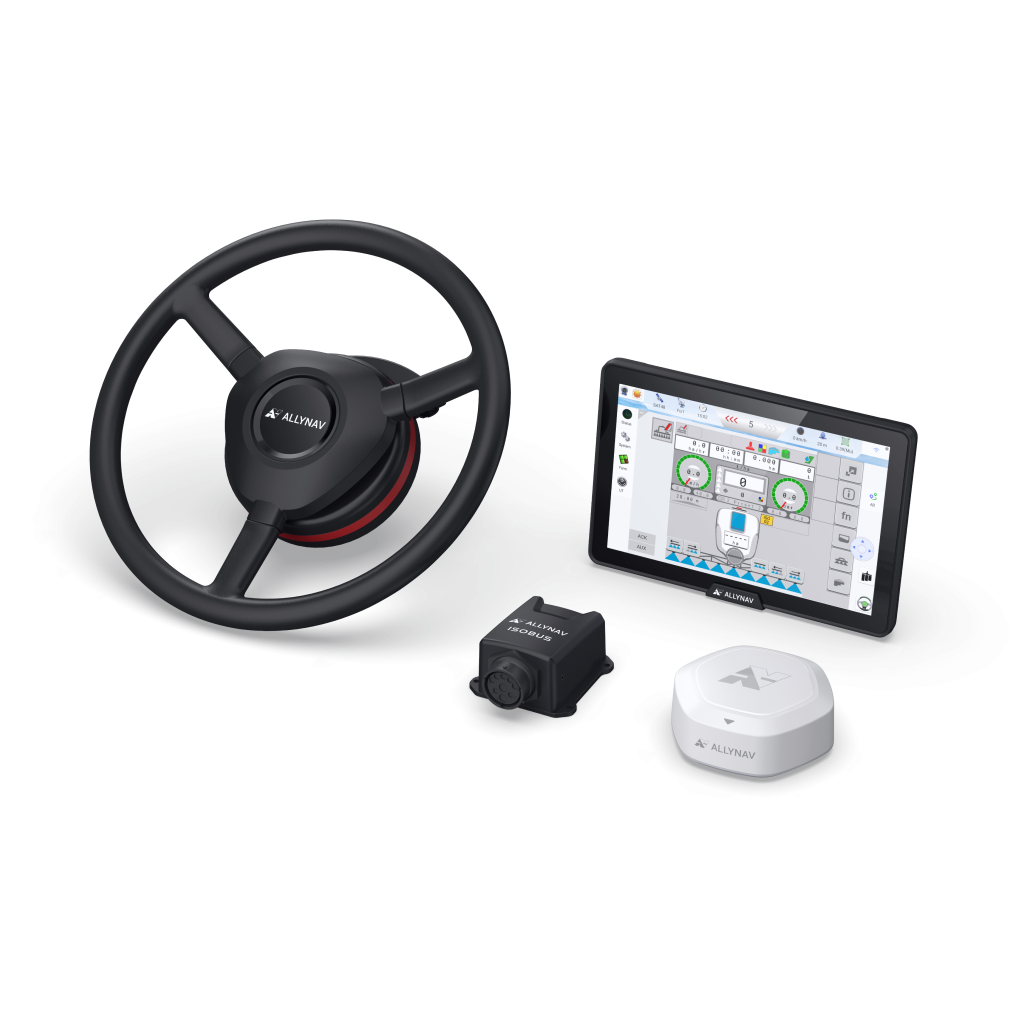

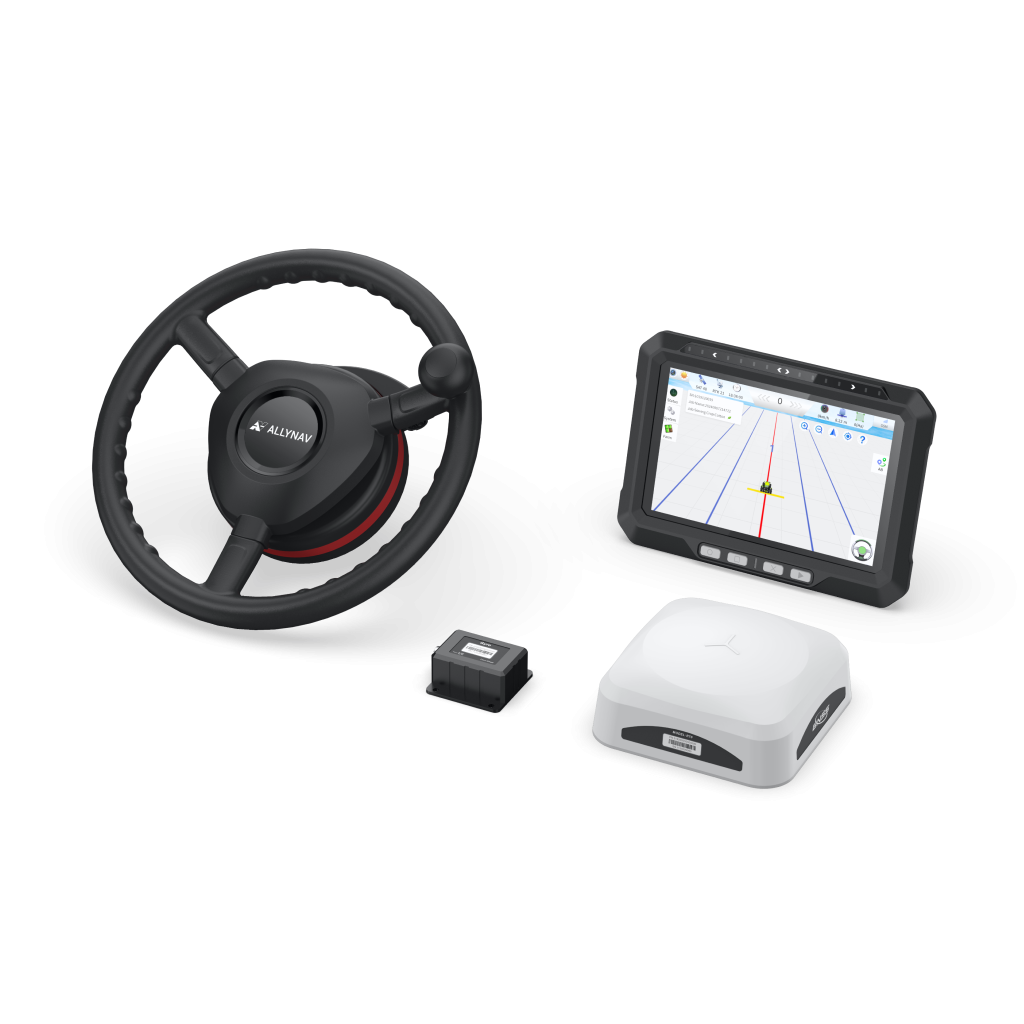

AF305 Automated Steering System
An Advanced Steering Solution for Precision Agriculture
EFFICIENTSTABLEPREMIUMACCURATEUPGRADABLE
- The AF305 Automated Steering System uses a high-torque motor control design, combined with a self-developed control algorithm, achieving ±2.5 cm pass-to-pass accuracy
- Supports multiple vehicle types with easy 20-minute installation and setup
- ISOBUS-compatible for seamless integration with agricultural implements
- Advanced correction services provide reliable positioning even in challenging environments
- Worry-free autosteering with terrain compensation and intelligent path planning
- Advanced GNSS positioning
- Auto-steering control
- Easy installation (20 min setup)
- ISOBUS compatible
- Terrain compensation
- ±2.5 cm accuracy
Learn More About AF305 Automated Steering System
Automated and Smart Control
Self-developed control algorithm with high-torque motor delivers precise automated steering, reducing operator fatigue and improving field efficiency.

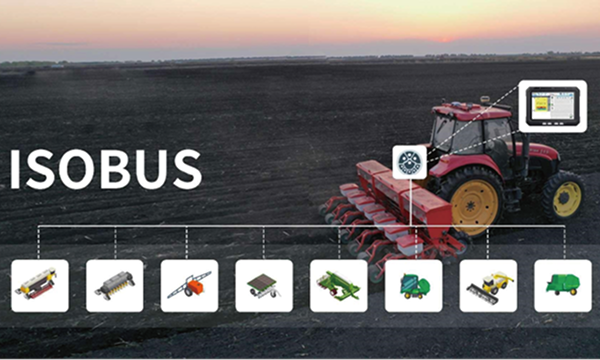

Extensive (ISOBUS) Compatibility
Full ISOBUS compliance enables seamless communication between the AF305 terminal and a wide range of agricultural implements and tractor brands.

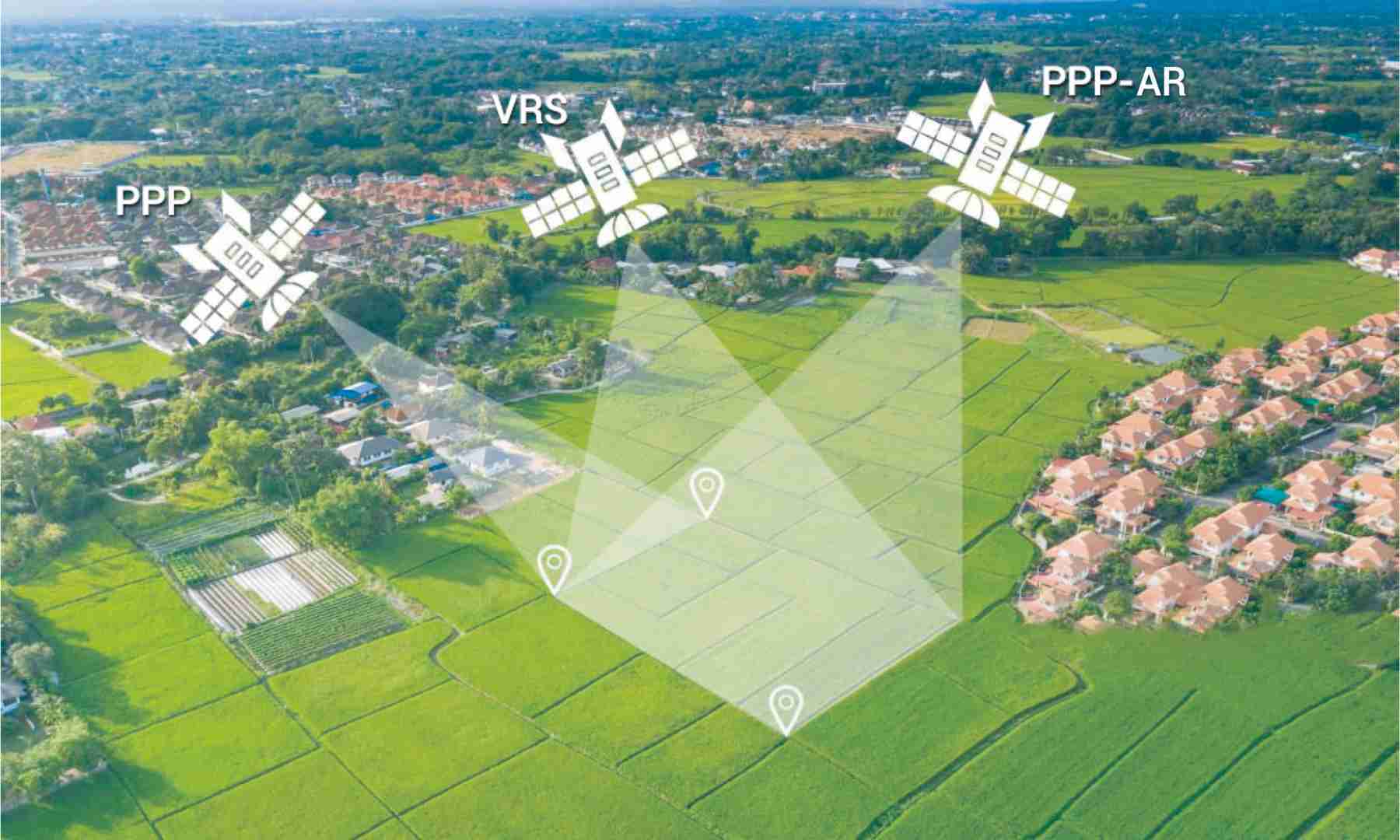

Advanced Correction Services
Supports satellite-based and ground-based differential corrections with full AllyLink Service compatibility for dynamic centimeter-level accuracy worldwide.
Worry-Free Autosteering
Built-in terrain compensation, obstacle detection, and intelligent path planning ensure precise, safe operation even in complex field conditions.
Specifications
| RTK Accuracy (RMS) | Horizontal: 8 mm + 1 ppm, Vertical: 15 mm + 1 ppm |
|---|---|
| Initialization Time | <5 s (typical), <10 s (reliable) |
| Constellation | BDS, GPS, GLONASS, Galileo, QZSS, SBAS, L-Band |
| Screen | 10.1 inches, 1280×800, 750 nits |
|---|---|
| System | 8-core, 2 GHz, 6 GB RAM, 64 GB storage |
| Electrical | Power Consumption ≤ 12 W, DC 7–36V |
| Protection | IP67 |
| Operating Temp | –20°C to +70°C |
Frequently Asked Questions
Yes, this feature is available. Our receivers can be equipped with different models of GNSS boards, one of which can support broadcasting differential corrections via satellite, achieving accuracy similar to network or radio base station corrections even without internet connectivity.
Yes. Vesper has obtained AEF certification. The system supports UT and TC (Task Control). Note: The TC function requires a paid activation, while the UT function is available for free.
Yes. The GNSS receiver is equipped with a high-precision gyroscope for accurate attitude measurement, and the software includes a slope correction function to compensate for terrain variations during operation.
Interested in AF305 Automated Steering System?
Contact us today for more information or request a demo
