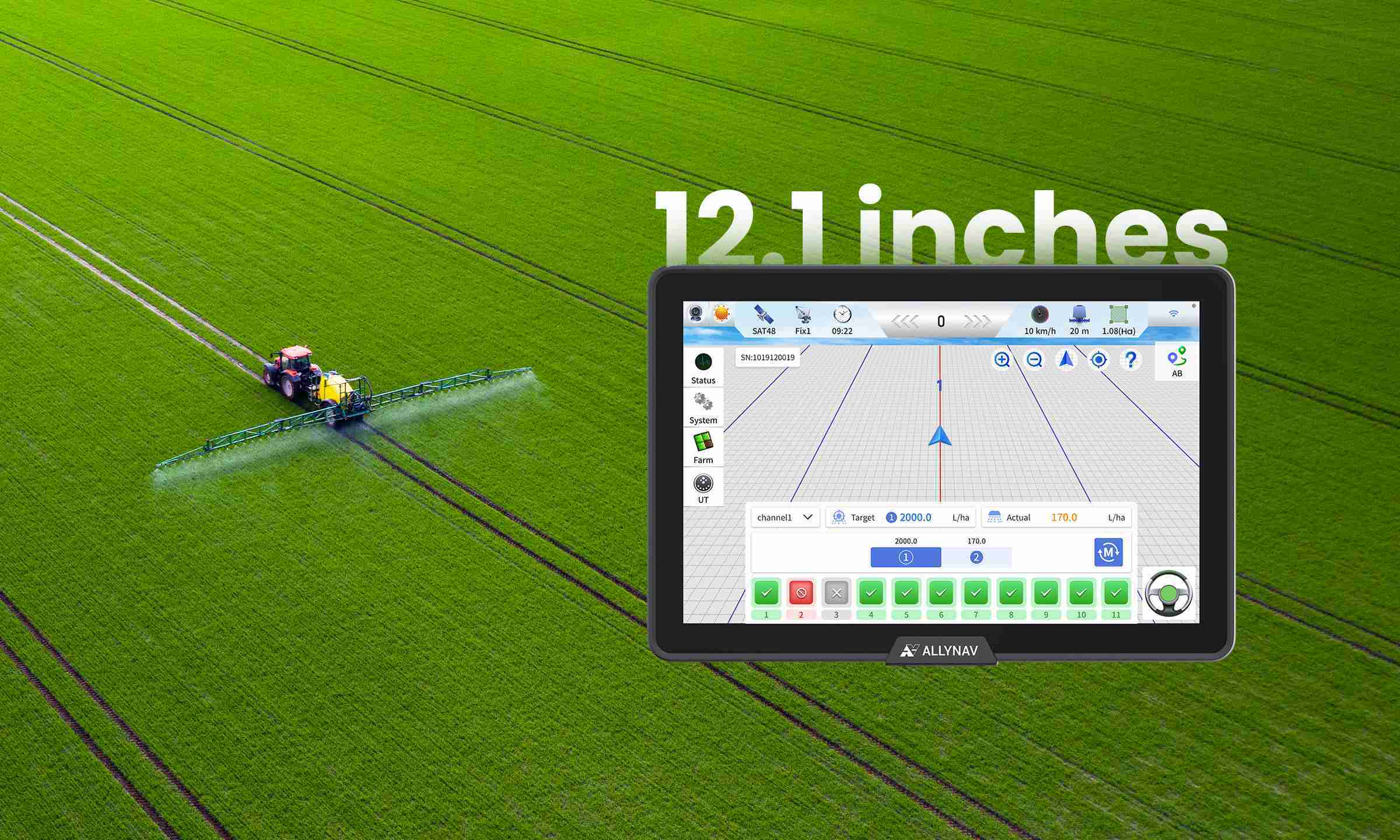

12.1" High-Brightness Touchscreen
Large sunlight-readable display ensures operators can clearly view implement data, guidance lines, and controls in all lighting conditions.

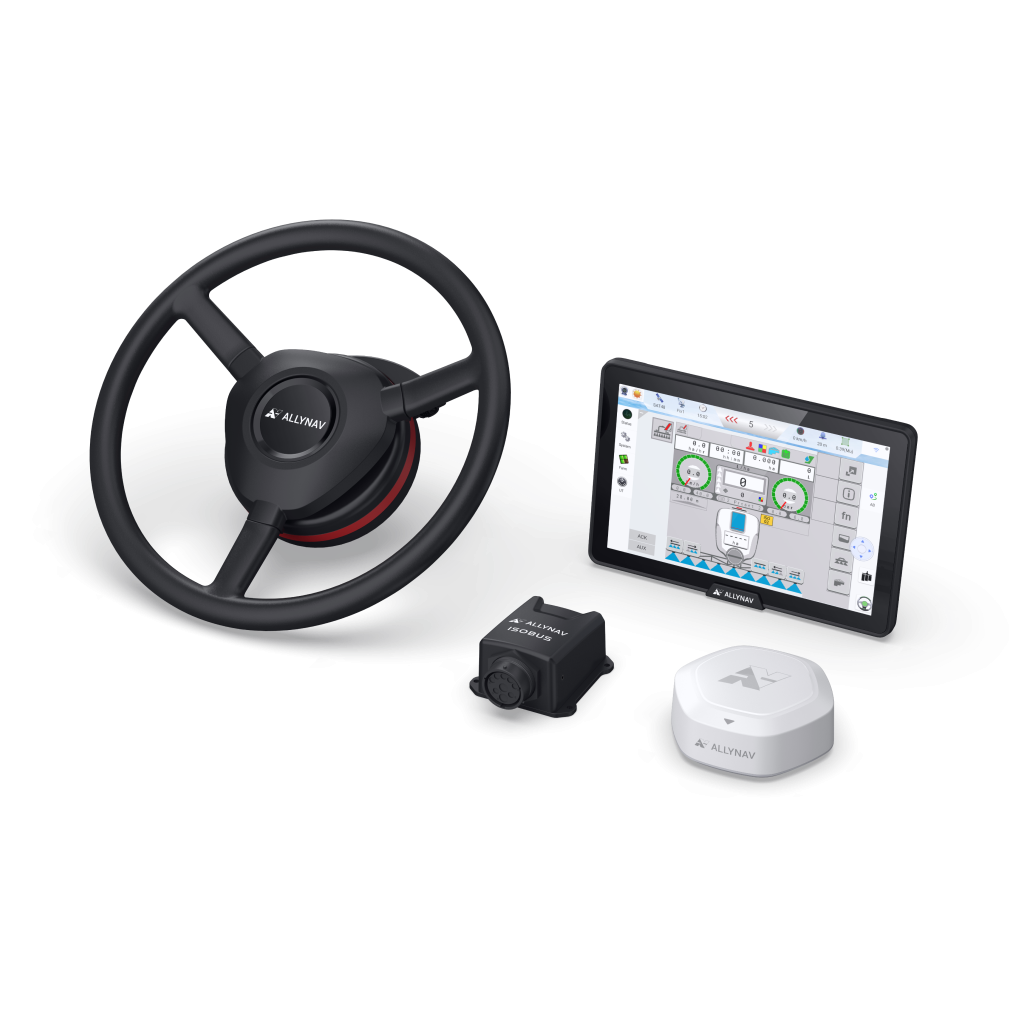

ISOBUS Terminal
A one-stop ISOBUS solution for smart implements — fully compatible with mainstream agricultural equipment
EFFICIENTSTABLEACCURATEUPGRADABLE
- One-stop ISOBUS solution fully compatible with mainstream agricultural equipment, empowering universal terminal operations across mixed-brand fleets
- 12.1-inch high-brightness touchscreen provides clear visibility even in direct sunlight, with intuitive interface for reduced operator training
- Built-in high-precision GNSS guidance eliminates the need for separate navigation displays
- AEF-certified ISOBUS compliance ensures reliable UT and TC functionality with any ISOBUS-compatible implement
- Highly expandable — supports future upgrades and integration with precision agriculture ecosystem
- AEF certified
- ISOBUS compliant
- Multi-brand compatibility
- UT and TC support
- Built-in GNSS guidance
- 12.1" sunlight-readable touchscreen
Learn More About ISOBUS Terminal

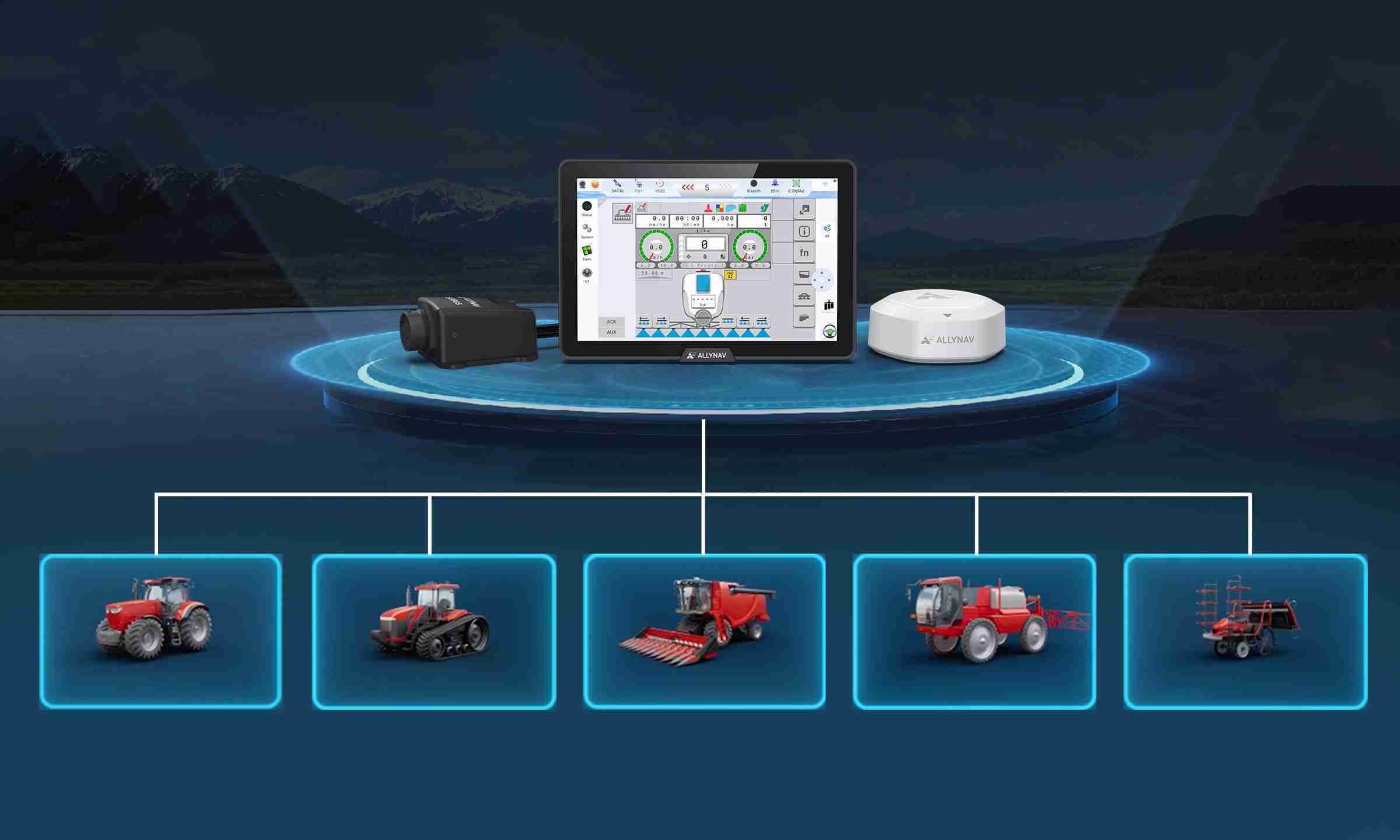

Flexible ISOBUS Compatibility
Works seamlessly with ISOBUS-compatible implements from all major manufacturers, eliminating brand lock-in and simplifying mixed-fleet management.

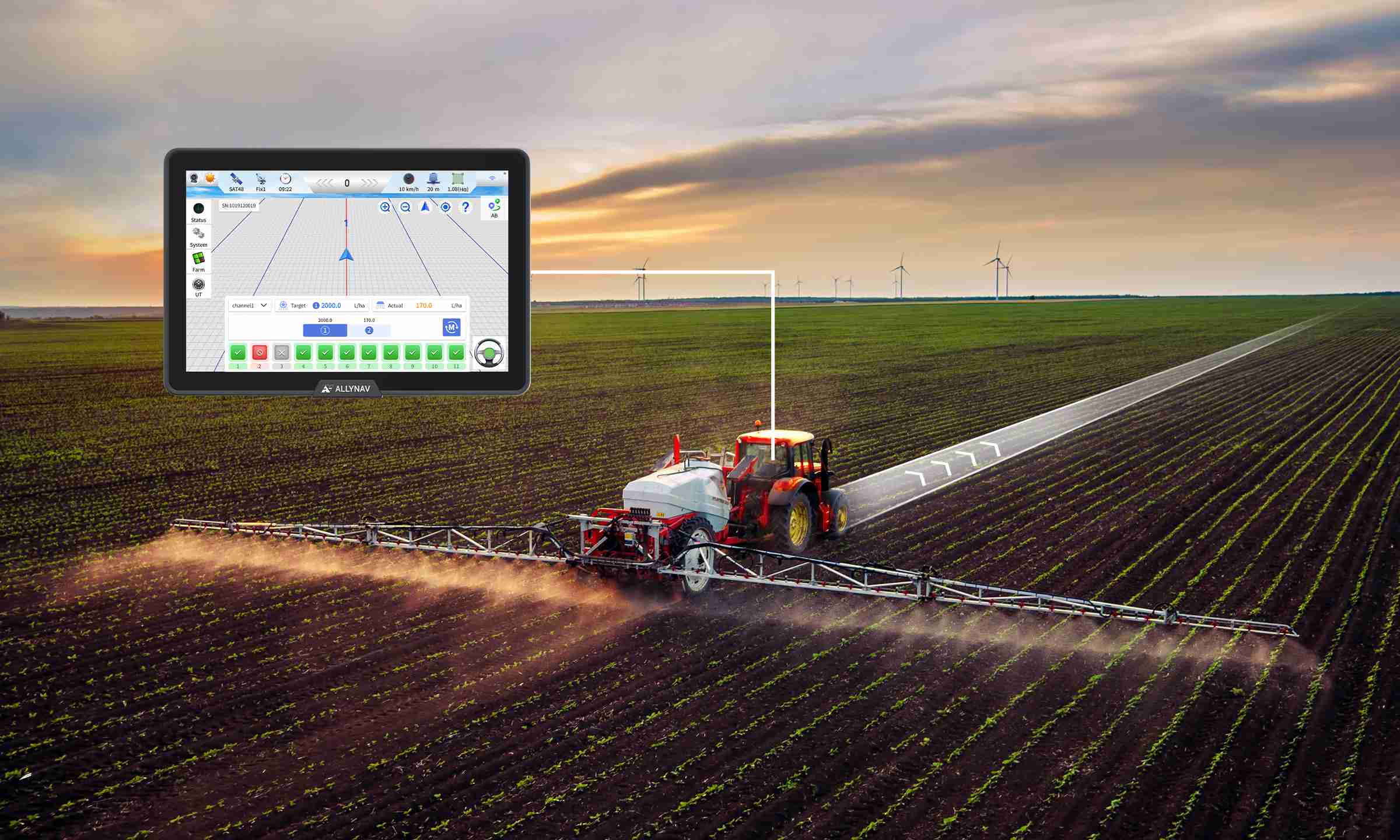

Free Integrated Guidance
Built-in GNSS guidance provides navigation capabilities without the need for additional hardware, reducing total system cost and installation complexity.

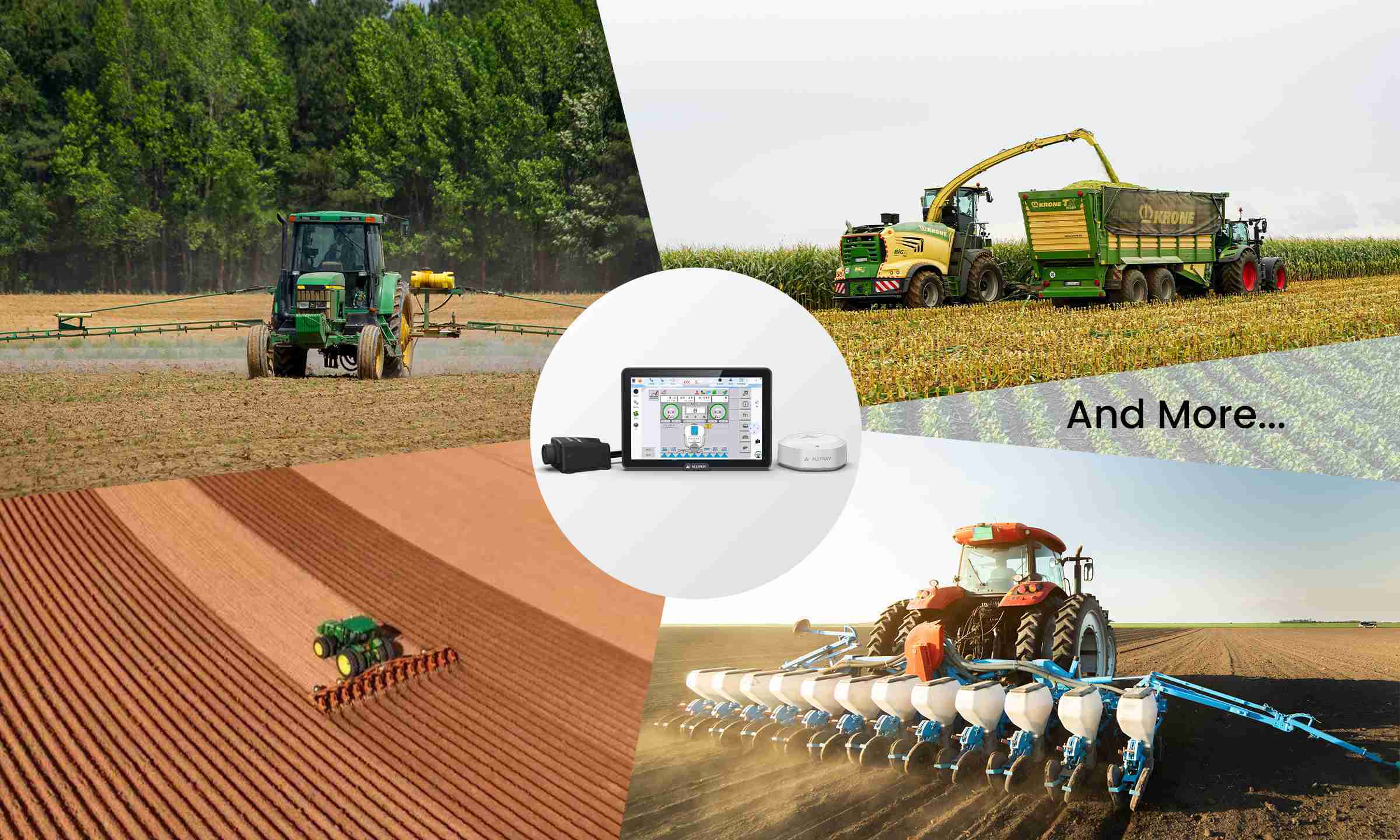

Highly Expandable
Modular design supports future upgrades including section control, variable rate application, and integration with the Vesper precision agriculture ecosystem.

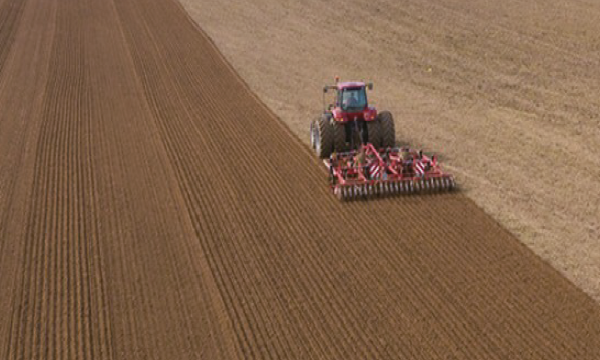

Tillage and Soil Preparation
Optimize tillage operations with precise implement tracking and automated section control for consistent soil preparation across the field.

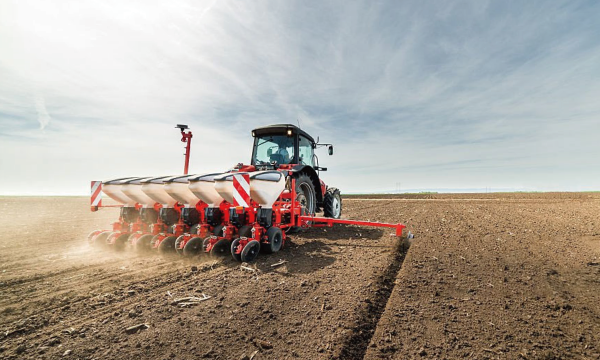

Accurate Planting
Achieve uniform seed spacing and depth control with ISOBUS-enabled planters, reducing seed waste and maximizing emergence rates.

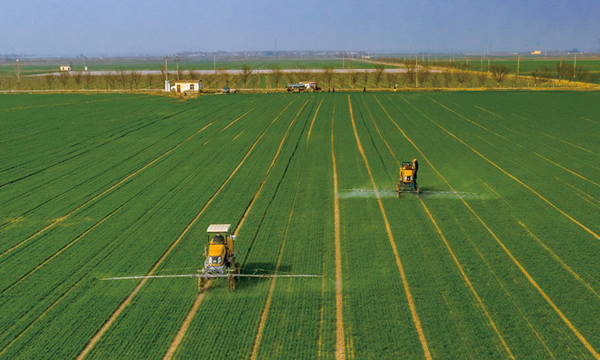

Precise Spraying
Enable precision spraying with automatic section control, reducing chemical overlap and ensuring consistent application across the entire field.

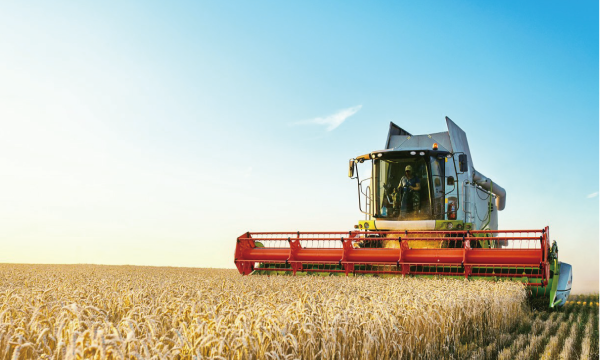

Efficient Harvesting
Monitor yield data, moisture levels, and harvesting parameters in real time for data-driven decision making and optimized harvest operations.
Specifications
| Display | 12.1 inches, 1280×800, 750 nits |
|---|---|
| Weight | ≤ 1.75 kg |
| Ingress Protection | IP67 |
| Operating Temp | –20°C to +70°C |
| System | 8-core, 2 GHz, 2 GB RAM, 32 GB Storage, Android 12.0 |
| Power Consumption | ≤ 12.0 W |
| Supply Voltage | DC 7–36 V |
| Serial | RS232 ×2, RS485 ×1 |
|---|---|
| CAN | CAN ×2 |
| USB | USB 2.0 ×1 |
| Digital I/O | DI ×2, DO ×2 |
| Power Output | 12V DC OUT ×1 |
| Camera Input | 4 channels (analog) |
Frequently Asked Questions
ISOBUS (ISO 11783) standardizes communication between tractors and implements from different manufacturers. It enables interoperability, unified display and control through a single in-cab terminal, eliminating the need for multiple proprietary monitors and simplifying operator workflow.
The VT (Virtual Terminal) or UT (Universal Terminal) displays and controls the implement interface inside the cab. It automatically detects connected ISOBUS-compatible implements and provides a standardized user interface for monitoring and controlling implement functions.
The Task Controller (TC) enables automated documentation and variable rate application by managing task data exchange between the farm management system and the implement. It records as-applied maps, tracks job progress, and supports prescription-based variable rate control.
